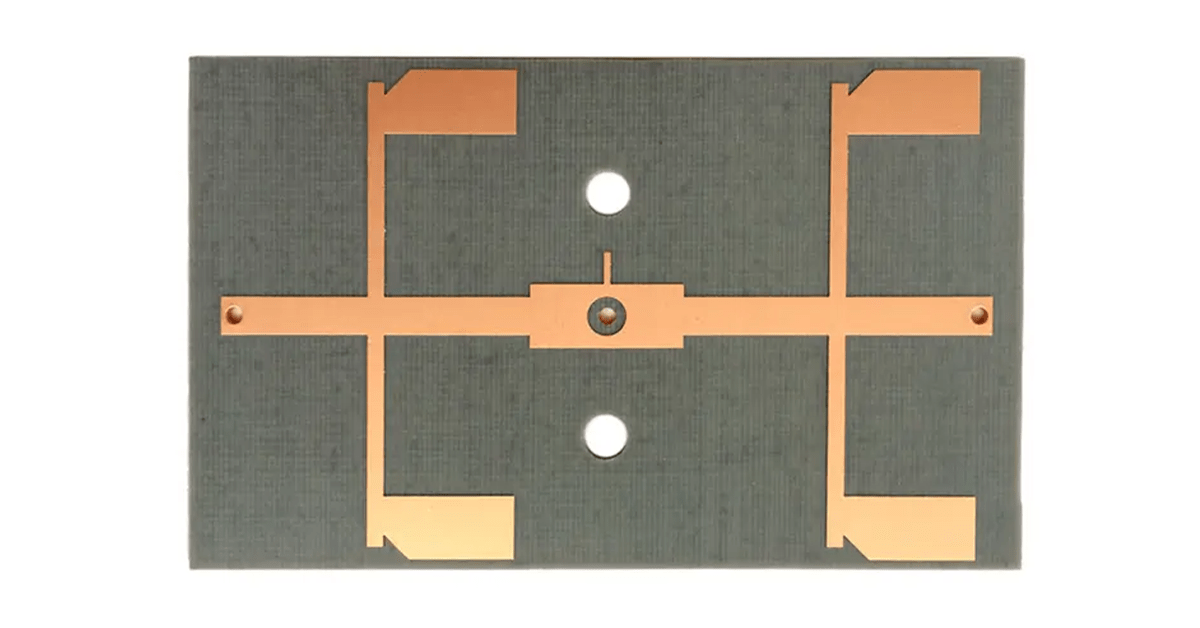

In the production of high-frequency microwave PCBs, interlayer alignment accuracy directly impacts signal transmission performance and reliability. For high-end applications like 5G communications, radar, and satellite systems, multilayer boards must maintain layer misalignment within ±25μm, placing extreme demands on manufacturers’ process capabilities. This article delves into the key technologies and solutions for achieving ultra-precise alignment.
1. Why Does High-Frequency Microwave PCB Require Ultra-Precise Alignment?
High-frequency PCBs typically use multilayer structures with microstrip lines, grounded coplanar waveguides (GCPW), and other designs requiring strict impedance control. Excessive misalignment can cause:
- Signal reflections
- Increased insertion loss
- Degraded system performance
To meet millimeter-wave frequency standards, manufacturers must ensure alignment errors ≤25μm in lamination, exposure, and drilling processes.
2. Key Factors Affecting Interlayer Alignment Accuracy
(1) Material Properties
High-frequency laminates (e.g., Rogers RO4000, Taconic RF-35) exhibit CTE (Coefficient of Thermal Expansion) mismatch during lamination, leading to misalignment.
→ Solution: Use low-CTE materials and optimize stack-up design.
(2) Equipment Precision
- Traditional exposure systems rely on manual alignment, introducing errors.
- Laser Direct Imaging (LDI) achieves ±5μm pattern positioning, significantly improving registration.
(3) Process Control
Unstable temperature/pressure curves during lamination cause substrate warpage, affecting alignment.
3. Core Technologies for Achieving ±25μm Alignment
(1) High-Precision CCD Alignment Systems
Modern PCB factories use optical CCD auto-alignment to capture fiducials (e.g., cross/L-shaped marks) and correct offsets in real time via software algorithms.
(2) Laser Drilling + LDI Co-Optimization
For HDI boards, laser-drilled holes must align precisely with LDI patterns. Advanced manufacturers employ:
- Laser-etched fiducials + vision alignment
- Alignment error ≤±15μm
(3) Vacuum Lamination & Stress Control
- Stepwise heating/pressure profiles + vacuum environment minimize warpage.
- X-ray inspection monitors post-lamination misalignment.
(4) AI-Based Compensation Algorithms
- MES systems collect historical data to predict material shrinkage.
- Pre-compensation in design further enhances accuracy.
4. Industry Benchmark: Case Study
A leading high-frequency PCB manufacturer achieved ±20μm alignment by:
- Deploying German-made LDI + high-resolution CCD systems
- Implementing plasma cleaning before lamination to reduce thermal deformation
- Using X-ray inspection for real-time process feedback
→ Result: >97% yield for 5G base station PCBs.
