RO5880 Drilling Parameters: Effectively Reducing Burrs in PTFE Material

Drilling is where most 5880 panels are won or lost. Two corrections to the usual shop-floor lore before the parameter tables: PTFE laminate does not have a low coefficient of thermal expansion (Z-axis is 237 ppm/°C — among the highest of any laminate), and it has no true glass transition, so heat from drilling softens the polymer gradually rather than at a defined Tg. Both facts point the same way: drill cool, drill sharp, drill shallow. Here is the full parameter set.

Why PTFE Burrs: the Corrected Material Basis

The PTFE matrix is soft and highly ductile, so it deforms elastically under the drill point instead of shearing cleanly — that elastic recovery is the root cause of entry and exit burrs. Heat is the second enemy: with no true Tg, PTFE softens progressively as temperature climbs, smearing the hole wall and welding swarf back onto the copper. And despite what many process sheets say, the Z-axis CTE of 237 ppm/°C means drilled holes will see significant thermal movement in service — which is why hole-wall activation and copper plating quality matter as much as the drill step itself. The multilayer reliability picture is in the multilayer processing guide.

Tool Geometry and Cutting Parameters

ParameterRecommended windowWhy
Drill point angle130–140°Lower axial thrust, less entry burr
Helix angle35–45°Efficient chip evacuation from a sticky polymer
Tool material / coatingSharp carbide; diamond coating for volumeGlass microfiber is abrasive — dull edges tear instead of cut
Spindle speed~80,000–120,000 RPM by diameterToo fast melts PTFE; too slow tears it
Feed per revolution~0.03–0.08 mmConsistent chip thickness, moderate heat
Stack height≤ 3 panels of 5880Soft laminate flexes in tall stacks

Backing and entry matter as much as the tool: a flat, high-density aluminum backing plate (≥1.5 mm) and 0.3–0.5 mm aluminum or composite entry foil suppress exit and entry burrs respectively. For holes above ~0.6 mm, two-step drilling with a pilot reduces thrust. Hole-to-hole spacing of at least 2× diameter prevents neighboring deformation fields from overlapping. Keep spindle runout under 0.008 mm with dynamically balanced collets.

Retract Strategy, Cooling and Tool Life

  • Fast retract — do not let the dwell time in the hole build heat; pull out promptly after breakthrough.
  • Dry, filtered compressed air for chip clearing — PTFE absorbs almost no moisture (0.02%), so no coolant is needed, only swarf removal.
  • Strict hit-count limits — replace bits when hole walls first show roughness under the microscope, not when visible burrs appear; microfiber wear is rapid and mostly invisible at the cutting edge.

Acceptance Criteria After Optimization

  • Burr height ≤ 0.025 mm by microscopic inspection.
  • Hole-wall smoothness assessed by backlight inspection.
  • Resin smear thickness measured by cross-section.
  • Adhesion pull test on the metallized barrel — the drilling result is only final after sodium-naphthalene or plasma activation and electroless copper hold on. The activation chemistry itself is covered in the surface treatment analysis.

Tune by DOE on your own equipment and lock the result into standard work instructions; the published windows above are starting points, not substitutes for characterization.

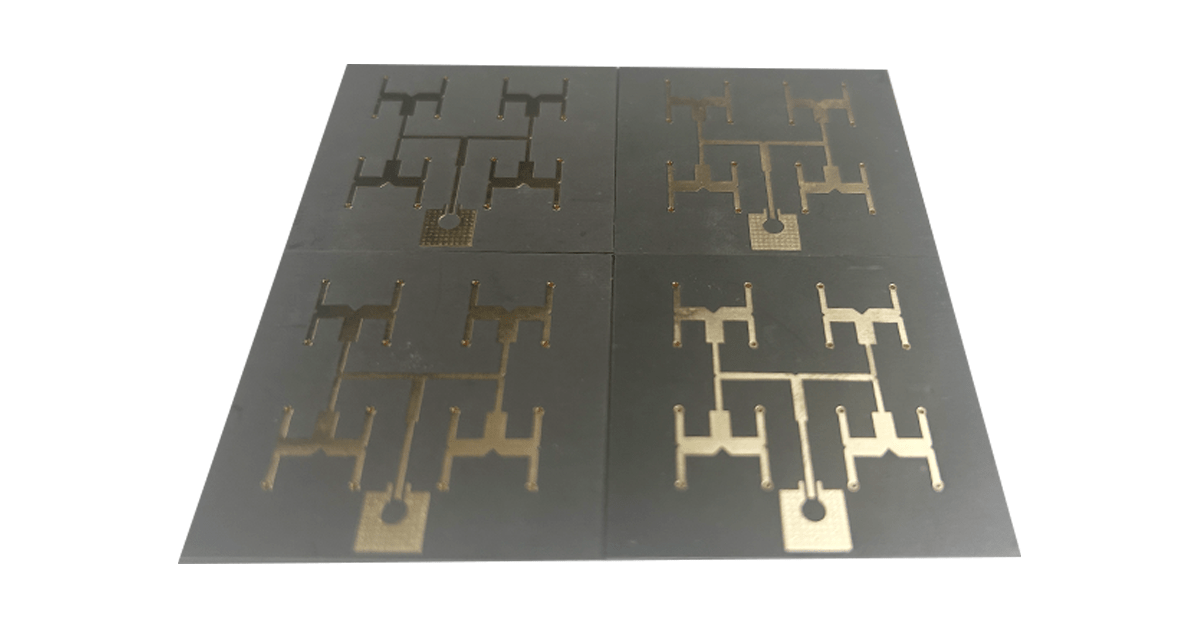

How XCE PCB Drills 5880

XCE PCB runs PTFE-specific drill programs with controlled hit counts, backing-plate discipline and sodium-naphthalene hole treatment as standard on every 5880 build — 2 to 72 layers, impedance ±10%, samples in as fast as 24 hours. Related: the full manufacturing walk-through, the board color guide and the laminate overview.

Frequently Asked Questions

Why does PTFE burr more than FR-4 when drilled?
PTFE is soft and ductile, so it deforms elastically under the drill point instead of shearing cleanly; combined with heat build-up from drilling, the material smears and tears rather than cutting. Sharp carbide tools, moderate feed and stack limits control it.
What is the correct CTE figure for RT/duroid 5880?
X 31, Y 48 and Z 237 ppm/°C per the Rogers datasheet. Some process notes wrongly cite a 'low CTE' — the Z-axis value is among the highest of any laminate and is the reason multilayer 5880 needs plating and bonding discipline.
Does 5880 drilling need coolant?
No coolant is needed — PTFE absorbs only 0.02% moisture. Dry filtered compressed air for chip clearing is the standard approach; heat is managed through speed/feed and retract speed, not through cooling fluids.
