Rogers 3003 is a high-frequency laminate material based on a ceramic-filled polytetrafluoroethylene (PTFE) composite. It holds a significant position in the RF and microwave field due to its very low dielectric constant and dissipation factor, excellent dielectric constant temperature stability, and relatively process-friendly characteristics.

I. Primary Application Areas

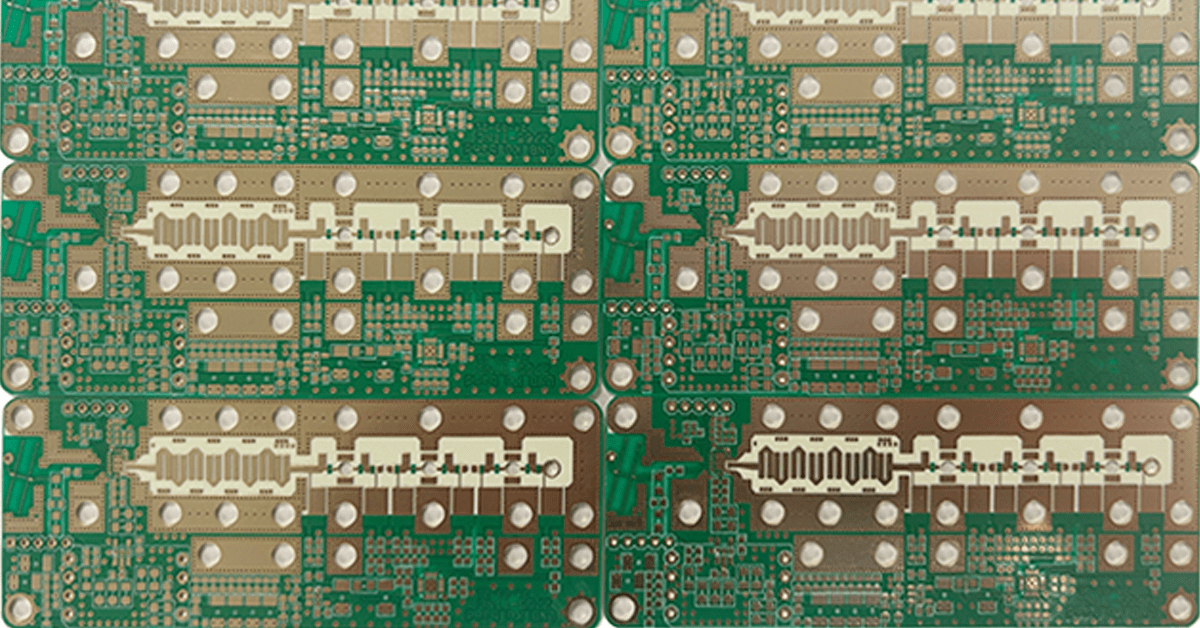

Rogers 3003 circuit boards are specifically designed for microwave circuits requiring high performance and reliability. Their core application scenarios include: airborne and shipborne radar systems, power amplifier and low-noise amplifier modules for satellite communications, microwave point-to-point radio links, radar sensors in automotive advanced driver-assistance systems (ADAS), and probes/calibration substrates for test and measurement equipment. In these applications, which are extremely sensitive to phase stability and signal loss, Rogers 3003 ensures circuit performance remains stable across wide frequency bands and under varying environmental temperatures.

II. Core Fabrication Process
Processing Rogers 3003 requires specific adjustments tailored to the properties of PTFE materials. The main steps are as follows:

1. Patterning: Due to the highly inert surface of pure PTFE, standard chemical treatments cannot provide sufficient adhesion. Before pattern transfer, the copper foil surface must undergo specialized pretreatment. Industry-standard methods typically involve sodium-naphthalene etch treatment or plasma bombardment to create a micro-roughened layer on the PTFE surface. This step is critical for ensuring strong adhesion of subsequent photoresists and electroless plating layers.
2. Etching: Following effective surface activation and pattern transfer, fine-line etching is performed to form the circuits. Due to the material’s relative softness, undercut must be controlled to guarantee line precision, especially for high-density designs.
3. Lamination and Drilling: For multilayer board lamination, specialized bonding films compatible with Rogers 3003 must be used. During drilling, the ductile nature of PTFE material can lead to “gum-like” drill smear. Therefore, optimized drilling parameters and specialized desmear processes, such as plasma etching or chemical etching, are essential to thoroughly remove PTFE residues from the hole walls, creating a clean, activated surface for hole metallization.
4. Hole Metallization: This is one of the most challenging aspects of processing Rogers 3003. Standard electroless copper deposition processes may not initiate properly on the activated PTFE surface. Typically, enhanced electroless copper formulations or special processes like physical vapor deposition (PVD) are required to ensure the continuity and reliability of the hole wall metallization. Electrolytic copper plating must be uniform to provide good conductivity and mechanical support.
5. Surface Finish and Profiling: After completing the outer layer patterning, a surface finish is selected based on the application, such as Electroless Nickel Immersion Gold (ENIG) or electrolytic gold plating. Final profiling is done using CNC routing. Due to the material’s softness, sharp router bits and optimized parameters are necessary to prevent burrs.

III. Key Considerations
Successful application of Rogers 3003 laminate necessitates close attention to the following core points:

• Primacy of Surface Activation: Effective activation of the PTFE on both the copper foil and hole walls is the decisive prerequisite for fabrication success. Any oversight will directly lead to poor adhesion and subsequent failures like delamination or hole wall pullaway.
• Strict Temperature Control: PTFE material can flow when its melting point is exceeded. The temperature profile for all thermal processing steps, especially lamination and soldering, must be strictly controlled within the range recommended in the material datasheet to prevent material deformation or performance degradation.
• Dedicated Compatible Materials: Selecting matching bonding films, drill bits, and chemical solutions is crucial. Using materials specifically designed for PTFE laminates can significantly improve fabrication yield and reliability.
• Considerations for Impedance Design: The dielectric constant of Rogers 3003 is very low and exceptionally stable, which is advantageous for designing broadband circuits. Designers should leverage this property and maintain close communication with the fabricator regarding processing tolerances to achieve precise impedance control.
• Experience Dependency and Communication: Processing Rogers 3003 requires specific process knowledge and experience. It is strongly advised to prioritize manufacturers with proven expertise in processing PTFE laminates when selecting a fabricator. Thorough communication and process validation regarding material handling and fabrication capabilities in the early project stages are essential.
