Ultra-Low Loss PCB: Rogers 5880 Laminate Analysis

This analysis needed a correction before it could be trusted: an earlier version attributed 5880’s low loss to a “ceramic-filled hydrocarbon system” with FR-4-compatible processing. Both claims are wrong — RT/duroid 5880 is glass-microfiber-reinforced PTFE, and its processing is distinctly not standard. With the recipe fixed, the real loss story is more interesting: where the loss actually comes from, and which of the four contributors 5880 attacks.

RT/duroid 5880: PTFE matrix, randomly oriented glass microfiber. Dk 2.20 ± 0.02, Df 0.0009 @ 10 GHz, moisture absorption 0.02%, Z-CTE 237 ppm/°C. It is a thermoplastic system — the laminate never melts in a press the way epoxy does, which is why bonding films and PTFE-specific hole treatment exist. Every loss conclusion below follows from PTFE physics, not from any resin chemistry. Full material basis: the 5880 material walkthrough.

Note the conductor-loss row: foil treatment is a designer choice on 5880, not a laminate property. The tight Dk band (±0.02) is what makes phase-matched structures practical.

Low loss is not free. 5880 demands: sodium-naphthalene or plasma hole activation before electroless copper (bare PTFE rejects metallization), bonding films or low-flow prepreg instead of ordinary lamination, drilling discipline on soft laminate, and Dk-aware impedance design. These are solved processes at any RF fabricator — but they are not FR-4 processes, and quotes that pretend otherwise produce boards that fail after reflow. The process specifics: the hybrid lamination guide and the drilling guide.

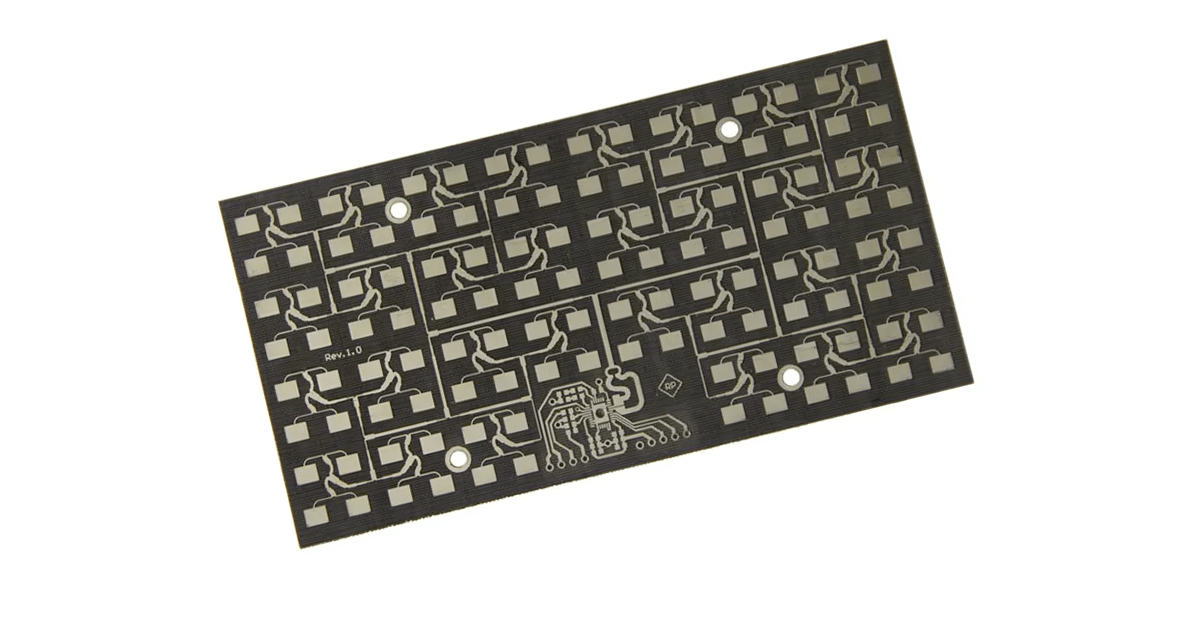

• Long mmWave runs — feed networks, beamforming manifolds, where every 0.1 dB is link budget.
• Phase-critical arrays — tight Dk band + isotropy = predictable electrical length.
• Outdoor / humid environments — 0.02% absorption keeps loss numbers valid in rain, unlike hydroscopic substrates.
• Not for digital speed — the Z-CTE 237 and softness rule out high-layer-count digital; there 5880 buys nothing. The material boundary is argued in the AI application analysis.
