Short answer: RT/duroid 5880 substrate is naturally translucent whitish PTFE — not black, not green. The color you see on a finished board is entirely the solder mask, and on a PTFE-based laminate that choice carries more process weight than on FR-4. Here is the practical breakdown.
First, Correct the Substrate Color
Two claims circulate about RT/duroid 5880’s natural color — including, until now, on this page — and they contradict each other. The datasheet-supported reality: 5880 is a glass-microfiber-reinforced PTFE composite, and an unclad laminate looks translucent to near-white. Copper-clad, it is of course copper on both faces. There is no version of 5880 that is a black substrate — that sentence in older write-ups is simply wrong, and we are retiring it here.
Why the confusion is common: on FR-4, the substrate itself is yellow-green and the solder mask reads as a tint over it. On 5880, the pale PTFE base means the solder mask color you specify is very close to the color you get — whites stay whiter, blacks stay deeper.

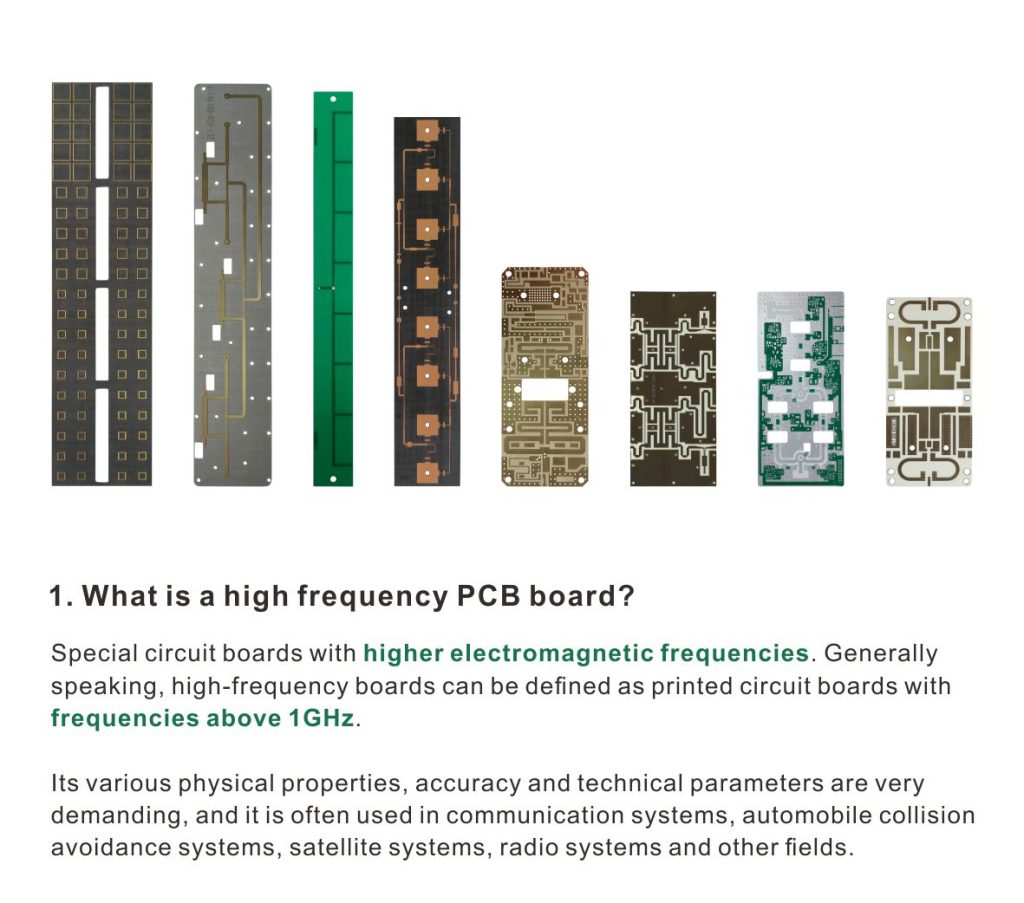

The Visible Color Is the Solder Mask
Every common legend color is available on 5880 builds: green, red, blue, white, purple, black. The functions are identical to any PCB — protecting copper from oxidation, corrosion and solder bridging — but three choices dominate in practice:
| Color | Typical use on 5880 builds | Why |
|---|---|---|
| Green | Default for nearly all RF/microwave work | Best AOI contrast against copper, cheapest chemistry, most stable in mass production |
| Black | Defense / radar / products where layout must not be readable | Conceals circuit topology; hardest for AOI, so inspect off-board or accept slower optical QA |
| White | LED / lighting-adjacent assemblies | Reflectance; note white masks yellow fastest under UV and thermal aging |
| Blue / red / purple | Branding, panel identification | Cosmetic; verify mask-plating compatibility on PTFE with your fabricator |
The PTFE Reality: Solder Mask Adhesion Is Not FR-4 Adhesion
On FR-4, solder mask bonds to a rough, chemically active epoxy-glass surface. On 5880 it bonds to PTFE — one of the lowest-surface-energy polymers in industry. The consequences are practical, not theoretical:
- Surface preparation matters. The copper surface (and any treated PTFE edge) must be properly cleaned and micro-roughened before mask application, or lifting around fine RF traces can appear after thermal cycling.
- Handling is softer throughout. 5880 panels are more susceptible to handling damage than rigid FR-4 — gloves and padded transport are standard practice in a 5880 line, and the same care extends to post-mask processes.
- Plan mask-free RF zones deliberately. Many antenna and mmWave designs keep solder mask off the radiating region entirely; on 5880 this also removes a lossy dielectric layer from the radiating surface — a small but real gain at Ku-band and above.
The material-level drilling and plating controls that matter even more than mask color are covered in our 5880 manufacturing process guide.

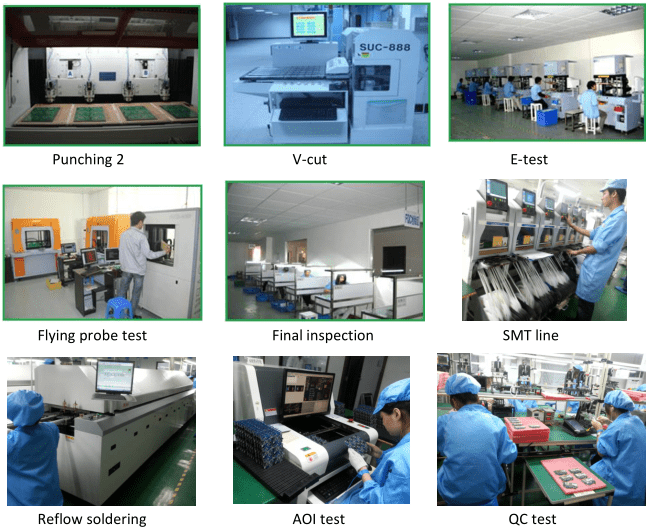

How XCE PCB Builds RO5880
XCE PCB builds RT/duroid 5880 boards in all standard legend colors, 2 to 72 layers, impedance controlled to ±10%, panels up to 600 × 1200 mm, with sodium-naphthalene hole treatment for reliable PTH plating. Samples in as fast as 24 hours when laminate is in stock. For the material itself, see the 5880 laminate overview and the 5880B parameters guide.
Frequently Asked Questions
What color is RO5880 laminate naturally?
Can RO5880 PCBs be made in colors other than green?
Does solder mask adhere well to PTFE laminates like 5880?
Does solder mask color affect RF performance on a 5880 board?
