Analyzing the Core Status and Role of Rogers 5880 High-Frequency PCBs in Research Projects

In RF research, the substrate is part of the instrument. A measurement on an unpredictable laminate measures the laminate, not the idea — which is why RT/duroid 5880, with Dk 2.20 ± 0.02, Df 0.0009 and published, stable behavior, functions less like a component and more like a calibration reference for the whole experiment. This article analyzes the three roles it plays in research programs, and the practical realities of specifying it.

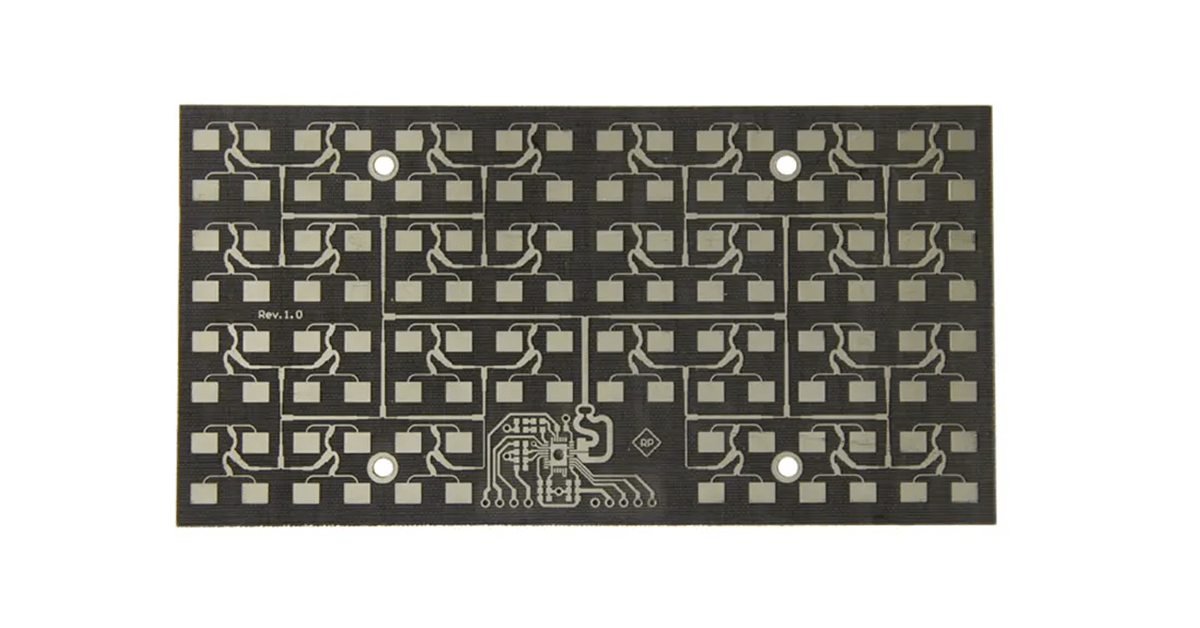

A new antenna or circuit design must prove itself against a substrate whose behavior is known to tight tolerances. On FR-4 — with a loose Dk spread and significant loss — measured gain, efficiency and beam shape are convolved with material uncertainty, and a reviewer can legitimately ask how much of the result is the design. On 5880 the substrate contributes almost nothing unmodeled: Dk 2.20 ± 0.02, Df 0.0009, isotropic microfiber reinforcement, 0.02% moisture absorption. The board approaches a “transparent” medium — the experiment measures the design.

This is also why 5880 results port well: a linewidth or resonator length designed on 5880 can be re-simulated and transferred to a production material with the physics already validated. The family parameters are tabulated in our 5880 parameter guide.

Terahertz development, 6G front ends, high-Q resonators, low-noise receiver chains — wherever the research question sits close to the noise or loss floor, the substrate stops being a passive detail. 5880’s Df 0.0009 keeps the maximum of the signal budget available for the phenomenon under study rather than the board, extending useful experiments toward Ku-band and above. Where the work is frequency-extended and weight-sensitive, the 5880LZ variant (Dk 1.96, Z-CTE 41.5 ppm/°C) is the usual companion choice — the selection logic is in our 5870 vs 5880 comparison.

Reproducibility is the currency of publication. Specifying 5880 gives collaborating labs and reviewers a common, well-documented physical constant: the same panel-to-panel Dk, the same loss, the same thermal coefficient (−125 ppm/°C, negative and stable). Re-experiments can buy the same laminate and expect the same electrical environment — which materially improves the credibility of replication attempts and shortens review friction. Comparisons against other candidate platforms benefit from the same discipline: our Rogers vs PTFE selection guide provides the parameter baseline for that argument.

• PTFE processing is not FR-4 processing. Holes require sodium-naphthalene or plasma treatment before metallization; panels are softer and want careful handling. Choose a fabricator with proven PTFE flow — the 5880 manufacturing guide details the controls.
• Z-axis CTE 237 ppm/°C constrains multilayer prototypes. For multi-layer research boards with through-holes, either follow the reliability rules (plated copper ≥1.2 mil, aspect ratio ≤6:1, ductile plating) or move the prototype to 5880LZ.
• Thickness is part of the experiment. Cores span 0.127–3.175 mm; antenna gain and resonator frequency shift with thickness, so specify and document it as a variable, not an assumption.
• Prototype speed matters. Laminate stock permitting, samples in as fast as 24 hours keep iteration loops short — often the difference between a conference submission and a missed deadline.

XCE PCB builds RT/duroid 5880 and 5880LZ boards from 2 to 72 layers, impedance controlled to ±10%, panels up to 600 × 1200 mm, with sodium-naphthalene hole treatment as standard and small-quantity prototyping welcome. Broader material context: the 5880 laminate overview, the low-loss analysis and the unique-advantages analysis.
